1. giới thiệu sản phẩm
CNC Steel Plate Sawing and Milling Machines are currently in a monopoly state by foreign countries, and in China it is still in the early stage of research and development. Ningshing Hengli dared to be the first, and lasted for five years, overcame many difficulties, took the lead in the development of CNC Steel Plate Sawing and Milling Machine, filled the gap of high-efficient precise sawing and milling by circular sawing machine in China, and its performance reached the international advanced level. The machines can be widely used in metallurgy, machinery, mold making and other industries. Compared with traditional band sawing machines, the circular sawing machines have the features such as fast sawing speed, high accuracy and excellent cutting surface.
The machines adopt a fixed-beam type gantry frame structure to facilitate the feeding and discharging of the steel plate. The cutting length of the steel plate is not limited by the machine structure.
The machines consist of two parts, one is cutting motion and feeding motion by the circular saw blade, the other is feeding and discharging motion of the steel plate. The movement uses a numerical control system to control the servo motor to achieve stepless thay đổi tốc độ. Điều chỉnh tốc độ cắt và tốc độ cho ăn theo đặc tính và độ dày của vật liệu cắt; điều chỉnh độ dài tùy ý theo yêu cầu cắt. Độ chính xác của sản phẩm gia công cao và độ phẳng, độ vuông góc và độ nhám của bề mặt cưa tốt.
The steel plate cutting process is clamped synchronously in the vertical direction and the cutting direction. The special design ensures positioning accuracy and cutting stability and reliability. The machine tool adopts oil spray micro-lubrication cooling method, which is clean and of pro-environment. Due to the edge of the tool, the cutting surface has the milling result.

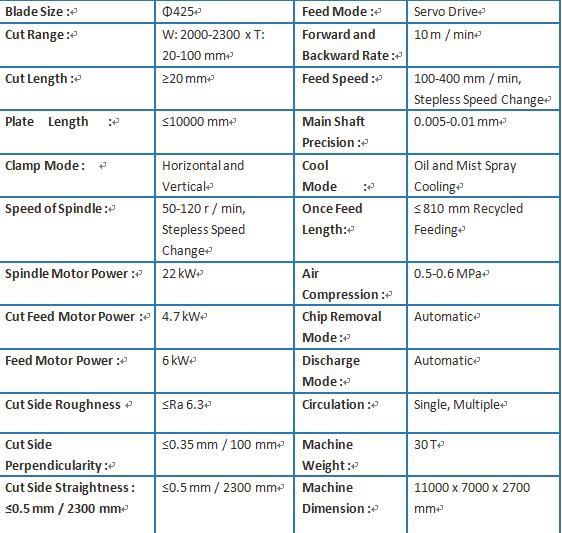

2. thông số chính
3. thành phẩm
4.Đóng gói
chúng tôi có kỹ thuật trong việc xuất khẩu bao bì vận chuyển. Thực hiện nhiều biện pháp bảo vệ:
5. hồ sơ công ty
Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on RD.
We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.
Chú phổ biến: máy phay và cưa thép cnc - chất lượng tốt, nhà sản xuất, tốc độ cao, độ chính xác cao, độ chính xác cao, chất lượng cao
